Ojniční ložiska ACL Race Series s 0,025mm (0,001") extra clearance 8B663HX-STD

Detailní popis produktu

 Ojniční ložiska ACL Race Series s 0,025mm (0,001") extra clearance 8B663HX-STD



Popis výrobce:

The unique combination of design; metallurgy and engineering come together to deliver what drivers expect from high performance Trimetal engine bearings.

Designed to withstand higher RPM conditions; ACL Race Series Engine Bearings are available for many of the popular 4; 6 & 8 cylinder applications and feature:

• High strength overlay plate with reduced thickness for improved fatigue properties
• Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
• Increased crush for improved bearing retention
• Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing.
• Increased eccentricity to compensate for bore distortion at high rpm and to assist in the formation of hydrodynamic oil films.
• 3/4 grooved Main Bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings.
• Tight consistent wall tolerances to help you maintain consistent clearances.
• Enlarged ID chamfers on bearing edges where required to accommodate large fillet radius on performance crankshafts.



Tunnel [mm]: 56.507 / 56.520, Shaft [mm]: 53.315 / 53.340, Max. Wall: 1.559, Max. Length: 21.25, Half type: Upper & lower, Poznámka: 0.001"" extra oil clearance on STD journal.>
Aplikace: Chevrolet/Nova; Monza/OHV 16v (1975-76)/262, Chevrolet/Caprice/OHV 16v (1994-96)/265 L99, Chevrolet/Caprice; Camaro; El Camino; Malibu; Firebird; Lemans; Parisienne ,/OHV 16v (1979-82)/267, Chevrolet/Camaro/OHV 16v Large Pin (1968)/302, Chevrolet/Bel Air; Blazer; Bonneville; Camaro; Corvette; Firebird; Impala; Lemans; Monza; Nova; Pickup; Starfire; Sunbird ,/OHV 16v (1977-2002)/305, Chevrolet/Bel Air; Bonneville; Chevelle; Camaro; Impala; Pickup ,/OHV 16v (1968-73)/307, Chevrolet/C Series; Camaro; Caprice; Chevelle; Corvette; El Camino; Impala; K Series/OHV 16v Large Pin (1968-69)/327, Chevrolet/Bel Air; Bonneville; C Series; Camaro; Corvette; Firebird; Impala; K Series; Lemans; Suburban; Tahoe ,/OHV 16v (1967-2003)/350, Chevrolet/Bel Air; Chevelle; El Camino; Impala; K Series; Monte Carlo ,/OHV 16v (1970-80)/400, Chevrolet/Silverado; Tahoe; Yukon/OHV 16v (1999 on) Vortec/4,8L LR4 (Gen III) & LY2 (Gen IV), Chevrolet/Avalanche; Silverado; Suburban; Tahoe; Trailblazer/OHV 16v (1999 on) Vortec/5,3L Gen III & Gen IV, Chevrolet/Camaro; Corvette; GTO/OHV 16v (1997-2005)/5,7L Gen III LS1 & LS6, Chevrolet/Corvette; SSR; GTO; Trailblazer/OHV 16v (2005-09)/6,0L Gen IV LS2, Chevrolet/Express; Silverado; Suburban; Yukon; Hummer H2/OHV 16v (1999 on) Vortec/6,0L Gen III & IV Vortec, Chevrolet/Camaro; Corvette; G8/OHV 16v (2008 on)/6,2L Gen IV L99 & LS3, Chevrolet/Silverado; Tahoe; Yukon; Hummer H2/OHV 16v (2007 on)/6,2L Gen IV Vortec, Holden/All/OHV 16v/355 stroker, Holden/Caprice WL; WM; WMII; Commodore VZ; Crewman VZ; Statesman WL; WM; Ute VZ/OHV 16v/6,0L Gen IV L76, Holden/Commodore VE; VEII; Ute VE; VEII/OHV 16v/6,0L Gen IV L98, Holden/HSV E Series - Clubsport; Maloo; Senator; Z Series - Clubsport; Coupe; Maloo; Senator; Grange WL; WM/OHV 16v/6,0L Gen IV LS2, Holden/HSV E Series -Clubsport; GTS; Maloo; Senator; Grange WM/OHV 16v/6,2L Gen IV LS3, Holden/Brougham; Kingswood; Monaro; Premier HK; HT/OHV 16v/Chevrolet 307, Holden/Brougham; Kingswood; Monaro HG; HQ; HT; Statesman HQ/OHV 16v/Chevrolet 350, Holden/Adventra VYII/OHV 16v/5,7L Gen III LS1, Holden/Adventra VZ/OHV 16v/5,7L Gen III LS2, Holden/Commodore VT/OHV 16v/5,7L Gen III LS3, Holden/Commodore VX/OHV 16v/5,7L Gen III LS4, Holden/Commodore VY/OHV 16v/5,7L Gen III LS5, Holden/Commodore VYII/OHV 16v/5,7L Gen III LS6, Holden/Commodore VZ/OHV 16v/5,7L Gen III LS7, Holden/Crewman VYII/OHV 16v/5,7L Gen III LS8, Holden/Crewman VZ/OHV 16v/5,7L Gen III LS9, Holden/Caprice WH/OHV 16v/5,7L Gen III LS10, Holden/Caprice WHII/OHV 16v/5,7L Gen III LS11, Holden/Caprice WK/OHV 16v/5,7L Gen III LS12, Holden/Caprice WL/OHV 16v/5,7L Gen III LS13, Holden/Statesman WH/OHV 16v/5,7L Gen III LS14, Holden/Statesman WHII/OHV 16v/5,7L Gen III LS15, Holden/Statesman WK/OHV 16v/5,7L Gen III LS16, Holden/Statesman WL/OHV 16v/5,7L Gen III LS17, Holden/Monaro V2/OHV 16v/5,7L Gen III LS18, Holden/Monaro VZ/OHV 16v/5,7L Gen III LS19, Holden/Monaro Ute VU/OHV 16v/5,7L Gen III LS20, Holden/Monaro VY/OHV 16v/5,7L Gen III LS21, Holden/Monaro VYII/OHV 16v/5,7L Gen III LS22, Holden/Monaro VZ/OHV 16v/5,7L Gen III LS23, Holden/Clubsport VT/OHV 16v/5,7L Gen III LS24, Holden/Clubsport Y Series/OHV 16v/5,7L Gen III LS25, Holden/Clubsport Coupe V2/OHV 16v/5,7L Gen III LS26, Holden/Clubsport VZ/OHV 16v/5,7L Gen III LS27, Holden/Grange WH/OHV 16v/5,7L Gen III LS28, Holden/Grange WHII/OHV 16v/5,7L Gen III LS29, Holden/Grange WK/OHV 16v/5,7L Gen III LS30, Holden/Grange GTS VX/OHV 16v/5,7L Gen III LS31, Holden/Grange Y Series/OHV 16v/5,7L Gen III LS32, Holden/Maloo VU/OHV 16v/5,7L Gen III LS33, Holden/Maloo Y Series/OHV 16v/5,7L Gen III LS34, Holden/Senator VT/OHV 16v/5,7L Gen III LS35, Holden/Senator VX/OHV 16v/5,7L Gen III LS36, Holden/Senator Y Series/OHV 16v/5,7L Gen III LS37



APLIKAČNÍ KATALOG ACL

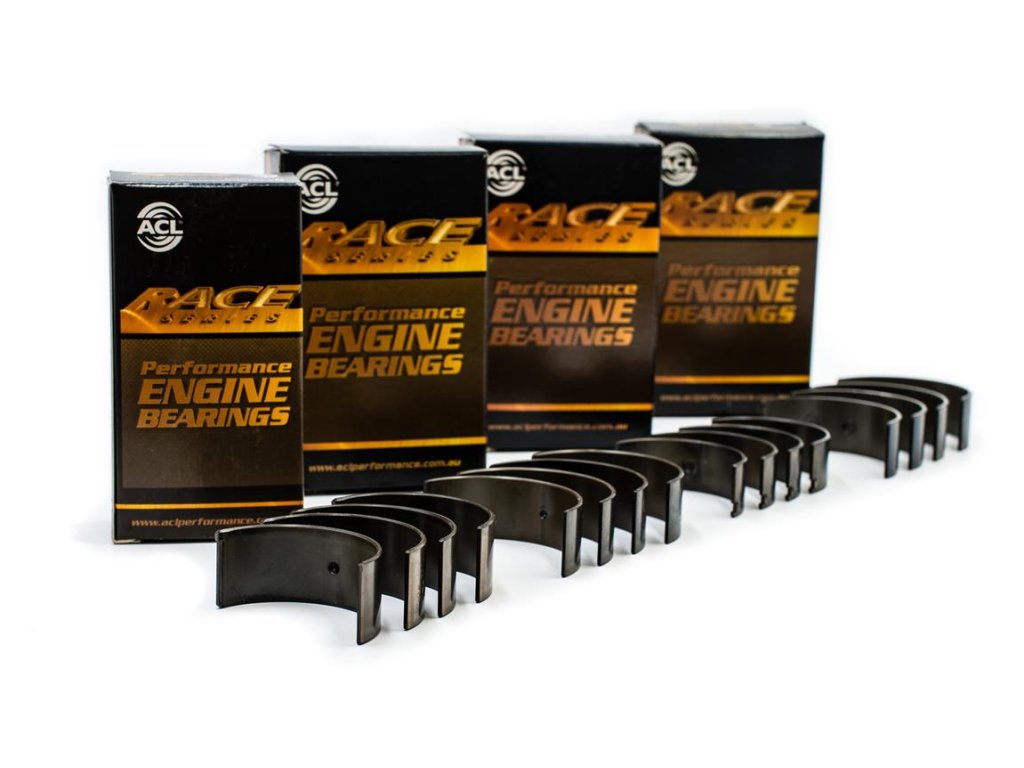

Obrázek je pouze ilustrační.

ACL je australská společnost s více než 70letou tradicí výroby přesných ložisek motorů, sídlící v Launcestonu, Tasmánie. Firma je významným dodavatelem OEM ložisek pro automobilový průmysl a zároveň nabízí rozsáhlý sortiment náhradních dílů pro globální aftermarket. Její produkty jsou známé svou vysokou kvalitou, precizností, robustní metalurgií a výkonem.

ACL má bohatou historii v motorsportu, sahající až do 60. let, kdy vyráběla ložiska pro tým Brabham ve Formuli 1. Její RACE Series Performance Engine Bearings si našly uplatnění v závodech jako australské Supercars, drag racing, rally a drift. Díky tomu jsou často první volbou pro motorové specialisty po celém světě.

Společnost nabízí jednu z největších nabídek ložisek motorů na aftermarketu, pokrývající přes 200 aplikací pro australské, americké, japonské, korejské a evropské vozy. Sortiment se neustále rozšiřuje o nově uvedené motory.

ACL disponuje vysokou úrovní vertikální integrace, zahrnující návrh a výrobu materiálů, nástrojů a složitých výrobních procesů. Firma se pyšní certifikacemi ISO9001:2015 (kvalita), ISO14001:2015 (ekologie) a ISO451001:2018 (bezpečnost práce).

Díky této kombinaci tradice, inovace a zaměření na výkon si ACL vybudovalo celosvětovou reputaci v oblasti motorových ložisek.
